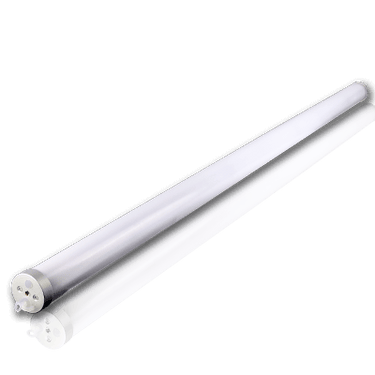

AX1 PIXELTUBE
28W RGBW LEDs – 180° Beam Angle
AX1 is a powerful pixel controllable LED RGBW baton that can be mounted at event and film sites to light up people and objects or create indirect lighting effects. A highly creative device that offers an infinite range of possibilities.
AX 1 Wireless Pixel Tube built-in rechargeable Samsung battery; RF, IR controlled, and via CRMX Wireless DMX; 28W power; 16 pixel segments; IP65; Incl, stand, 2 x eye-bolts, 2 x holder (Includes charger)
Optical
Colours: RGBW
Total LED power: 28W
Lumens: 955Lm
CRI: up to 88
Strobe: 0-25Hz
Beam Angle: 180˚
Pixels: 16
Electrical
Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
LED Lifetime: 50.000 Hours
Charging time (nominal): 7 Hours
Input Voltage (charger): 90-264V 47-63Hz
Input Voltage (Light): 48V 0.5A
Control
Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
Wired DMX: not supported
Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical
Construction
Housing: Polycarbonate, metal endcap
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 ˚C | 32-104 ˚F
Weight: 1kg |2.2Lbs
Dimensions: Ø42 x 1035mm | Ø1.6” x H40.7”
