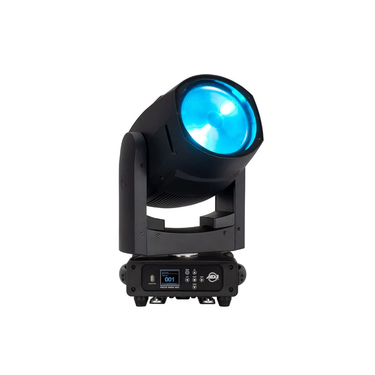

The FOCUS WASH 400 is a 400W, RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED moving head wash with a 10 to 41 degree motorized zoom, with flicker free operation for TV and film, linear white color temperature control from 2700K - 6500K, and virtual CMY color mixing.
SOURCE:
• 400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)
• 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
• 7139 Total Stable Lumen Output (Full ON, Zoomed Out to Full)
• 11072 LUX, 1029 FC @ 9.8’ (3m) (Zoomed In / Full ON)
• 1858 LUX, 173 FC @ 9.8’ (3m) (Zoom Out / Full ON)
• Beam Angle: 9.1° to 42.9°
• Max Field Angle: 54.5°
• Color Temperature: Tunable, 2400K to 8500K
CRI: 95.2
COLOR:
• Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control
• Virtual Color Wheel Control
• Virtual CMY Control
EFFECTS:
• RGBACL Color Mixing
• Virtual CMY Color Mixing
• 9° - 42° degree Motorized Zoom
• Electronic Strobe and Dimmer
• Color Temperature Red to Green control via DMX
• Linear Color Temperature control, 2700K to 10,000K
• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
CONTROL / CONNECTIONS:
• 5 DMX Channel Modes: [Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24)]
• Selectable LED Refresh Rates, 900Hz to 25kHz.
• Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds
• 6-button Control Panel and LCD Menu Display
• USB Firmware Update Port
• RDM (Remote Device Management)
• Quiet Fan Mode
• Locking 3-pin and 5-pin XLR Connector In/Out
• IP65 Locking Power Connector In/Out
• With Wired Digital Communication Network
SIZE / WEIGHT:
• Length: 10.96" (278.43mm)
• Width: 8.4" (213.33mm)
• Vertical Height: (Without Snoot)19.6" (498.1mm)
• Vertical Height (With Snoot) 22.37" (568.1mm)
• Weight: 23.5 lbs. (10.7 kg)
ELECTRICAL / THERMAL:
• Multi-voltage: AC 100-240V / 47/63Hz
• 460W Power Consumption @ 120V
• 430W Power Consumption @ 240V
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS:
• CE Compliant
• cETLus (Control #4010765)
• IP20
• dB Rating: 46dB @ 3'
INCLUDED ACCESSORIES:
• Snoot
• 1x40 Degree Linear Lens
• 2 Omega Brackets
• Safety Cable
• IP65 Locking Power Cable
Specifications and documentation subject to change without notice.
