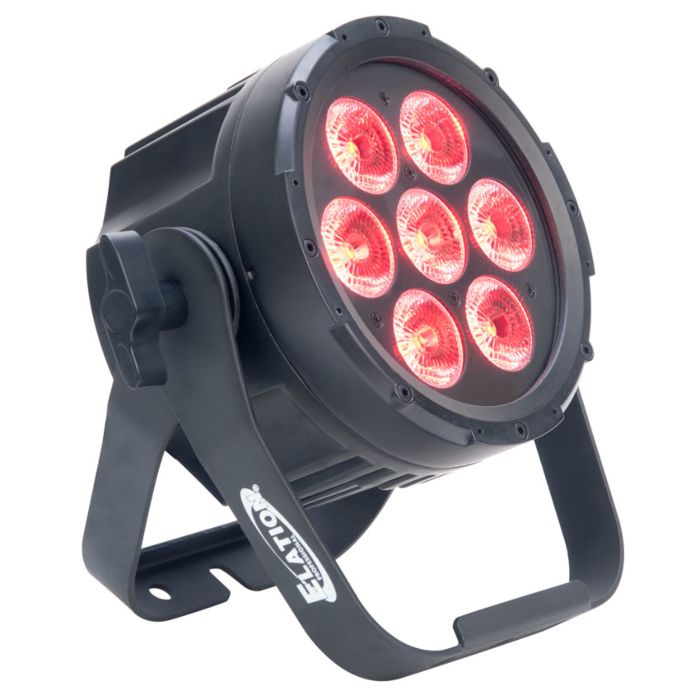

The indoor version SIXPAR 100™ features (7) 12W 6-IN-1 RGBAW+UV LEDs, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
Features
15° Beam 25° Field Angles
5 Variable Dimming Curve Modes
Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
5 Variable Dimming Curve Modes
Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Specifications
SOURCE
(7) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
12,850 LUX 1,194 FC @3.3’ (1m) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel / LCD Menu Display
3/5pin DMX and powerCON In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 10.1” (257mm)
Width: 4.9” (125mm)
Vertical Height: 9.6” (243mm)
Weight: 7.4 lbs. (3.3 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
89W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ITEMS
powerCON Power Cable
OPTIONAL ACCESSORIES:
SIXPAR100/GFH - Gel Frame Holder Kit
SIXPAR/BD100 - Barn Door
(7) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
12,850 LUX 1,194 FC @3.3’ (1m) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel / LCD Menu Display
3/5pin DMX and powerCON In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 10.1” (257mm)
Width: 4.9” (125mm)
Vertical Height: 9.6” (243mm)
Weight: 7.4 lbs. (3.3 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
89W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ITEMS
powerCON Power Cable
OPTIONAL ACCESSORIES:
SIXPAR100/GFH - Gel Frame Holder Kit
SIXPAR/BD100 - Barn Door
NOTE: Gel Frame Holder Kit required to attach Barn Door.
(Sold separately)
Specifications and documentation subject to change without notice.
