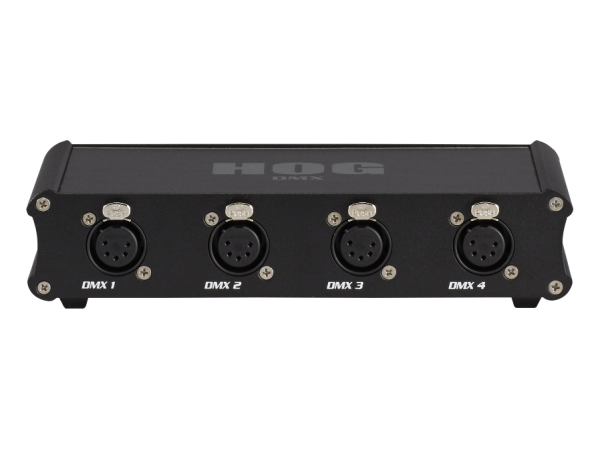

USB DMX SUPER WIDGET
The USB DMX Super Widget provides four universes of DMX-512 output from any Hog 4 console or Hog 4 PC. Up to two DMX Super Widgets may be connected at once via a USB Hub to provide eight full universes of DMX-512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only one USB DMX Super Widget can be connected to the Road Hog 4.
With Hog 4 PC, attaching USB DMX Super Widgets also unlocks the corresponding universes of Art-Net and sACN.
FEATURES
- USB connection to any Hog 4 console as well as Hog 4 PC
- Rugged, stackable aluminum housing
- Four DMX 512 outputs on 5-pin XLR connectors
- Supports up to 2048 output channels
- One USB input connector
- Up to two USB DMX Widgets can be connected via USB Hub
- Kensington security slot
- External PSU included
- Storage Temperature 20-60°C / 0-140°F
- Compliance: ETL, CETL, CE
WEIGHTS AND DIMENSIONS
- Width: 198mm / 7.8"
- Depth: 106mm / 4.2"
- Height: 45mm / 1.8"
- Weight: 0.5kg / 1.1lb
WIDGET COMPATIBILITY
| DMX Widget | DMX Super Widget | DMX Super Duper Widget | MIDI/LTC Widget | |
| Hog 4 | 8 | 2 | 1 | 1 |
| Full Boar 4 | 8 | 2 | 1 | 1 |
| Road Hog 4 | 4 | 1 | 1 (max 4 universes) | 1 |
| HedgeHog 4 | 2 | 1 (max 2 universes) | 1 (max 2 universes) | 1 |
| HedgeHog 4X | 4 | 1 | 1 (max 4 universes) | 1 |
| Rack Hog 4 | 8 | 2 | 1 | 1 |
| Hog 4 PC | 12 | 3 | 1 |
