300W COLD LED-BASED PROFILE WITH FRAMING AND CMY COLOR MIXING

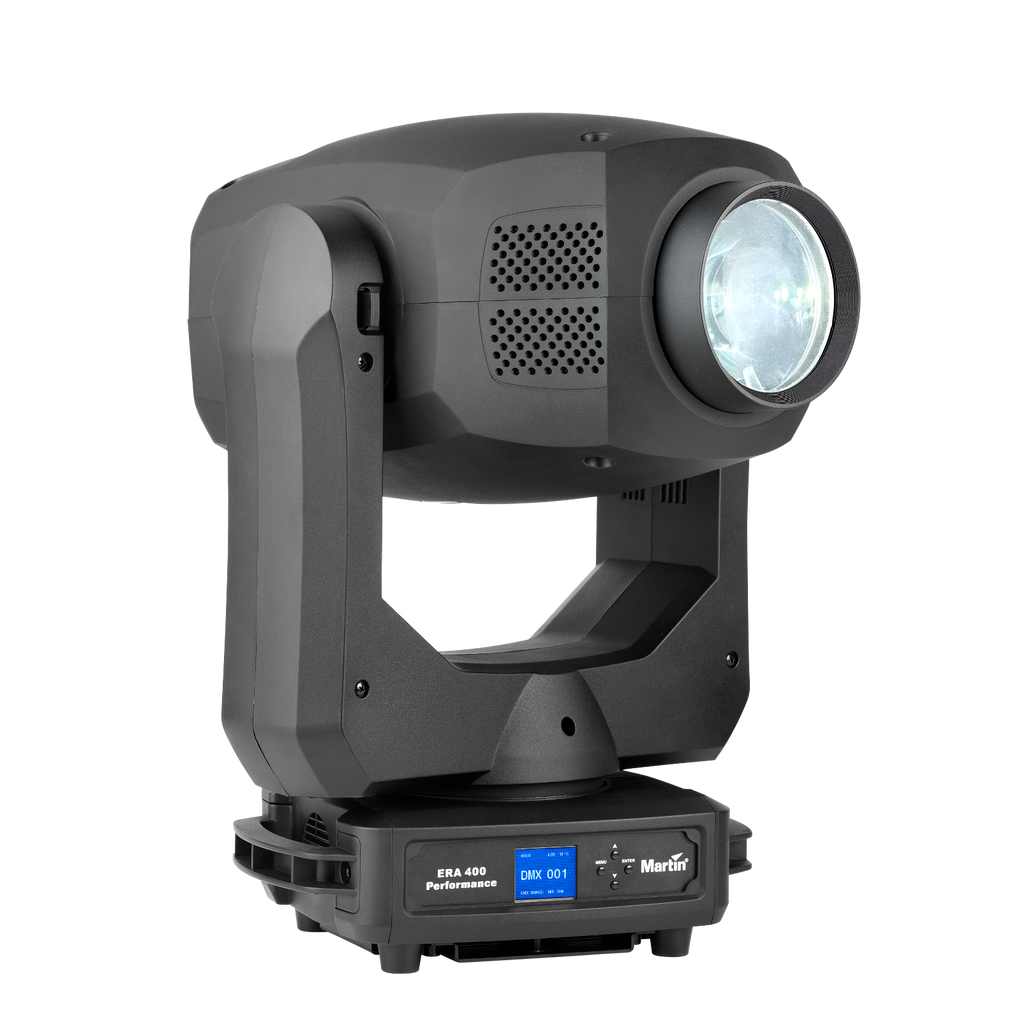

Designed to fulfill the demand for a bright, compact, tour-worthy moving head, the Martin ERA 400 Performance CLD combines a feature-loaded and rugged, yet cost-efficient profile for entertainment and rental applications. It features a highly efficient 300W cold white LED engine that produces a bright, sharp 6,500K gobo projection with a flat field. Additional key benefits include 1:3 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prism.
The ERA 400 Performance CLD includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage. When fully focused, gobos can be nicely framed with a soft edge, and each of the four framing blades can cross the entire beam independently for a full blackout. The entire system can rotate 90 degrees, allowing designers to direct light exactly where they want it to go and achieve unique movement effects not otherwise possible.
Whether being used for small and mid-sized concert and touring, live TV productions, corporate shows, cruise line or houses of worship, the Martin ERA 400 Performance CLD is ideal for a long list of scenarios, requiring a truly versatile LED profile that offers near limitless design and usage potential.
FEATURES
Bright 300 watt / 6,500K LED light source
10,000 lumen output
Smooth electronic dimming and fast strobe effects
Crisp optics with flat field
1:3 Fast zoom
CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
9-slot color wheel –for added color choice and split color effects
Full Curtain Framing blades with +/- 45° rotation of entire system for flexible shape generation
7 rotating/indexing gobos – All renowned Martin glass gobos
9 static gobos for great morphing effects
Iris – Fast and tight iris
3-facet prism – Real beam separation with rotation and index control for dynamic effects
Compact and low weight design
SPECIFICATIONS
PHYSICAL Length: 379 mm (14.9 in.) Width: 237 mm (9.3 in.) Height: 632 mm (24.9 in) Weight: 22.5 kg (49.6lbs)
DYNAMIC EFFECTS Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Electronic dimming: 0 - 100%, four dimming curve options Color mixing: CMY, independently variable 0-100% Color wheel: 9 color filters plus open Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Zoom: Motorized Focus: Motorized Framing: Rotatable framing module, +/- 45°, with 4 individually controllable full framing blades with variable angle and position. Prism: Rotating/indexing three-facet prism Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed
CONTROL AND PROGRAMMING Control options: DMX 16-bit control: Dimming, pan and tilt Setting and addressing: Control panel with backlit LCD display DMX channels: 30 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
OPTICS Front lens diameter: 110 mm Zoom range: 10° - 30° Light source: 300W LED engine Minimum LED lifetime: 20000 hours (to >70% luminous output)* *Manufacturer´s figure obtained under manufacturer´s test conditions
CONSTRUCTION Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP 20 GOBOS Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.) Maximum image diameter: 19.0 mm (0.75 in.) Gobo thickness, maximum: 1.1mm borosilicate glass
INSTALLATION Mounting points: Two quarter-turn brackets for rigging Orientation: Any
CONNECTIONS AC power input: Neutrik powerCON TRUE1 DMX data in/out: 3-pin & 5-pin locking XLR
ELECTRICAL AC power: 100-240V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode
TYPICAL POWER AND CURRENT 120 V, 60 Hz: 3.8A, 455W, PF 0.992 230 V, 50 Hz: 1.96A, 442W, PF 0.968 Steady Power Consumption: 44 W, all effects static, zero light output Half-cycle RMS inrush current: 6 A (at 230 V, 50 Hz) Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
THERMAL Cooling: Forced air (temperature regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F) Total heat dissipation (calculated, +/- 10%): 1550 BTU/hr.
APPROVALS EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
INCLUDED ITEMS 2 x Omega brackets for rigging clamp attachment
